Weatherproof Distribution Boxes HA Model Outdoor IP66 – Durable & Reliable Electrical Protection

Weatherproof distribution box with a transparent hinged cover designed to house DIN-rail breakers such as MCB, RCCB, and RCBO. Suitable for indoor and outdoor installations, these Weatherproof Distribution Boxes protect electrical circuits from dust, moisture, and environmental exposure while providing organized surface-mounted power distribution. Typically rated up to IP66 (model dependent) with multiple enclosure sizes available for flexible circuit capacity.
Unit: PCS
Add to quote
Download Data Sheet

Categories: ,

Weatherproof Distribution Boxes – HA Model Outdoor IP66

These Weatherproof Distribution Boxes are rugged, surface-mounted enclosures designed to house and protect modular DIN-rail devices such as MCB, RCCB, RCBO, isolators, contactors, timers, and surge protection devices (SPD). Built for indoor or outdoor electrical installations, they provide a clean, organized, and code-friendly solution for distributing electrical power while protecting installed equipment from dust, splashing water, humidity, and demanding site conditions.

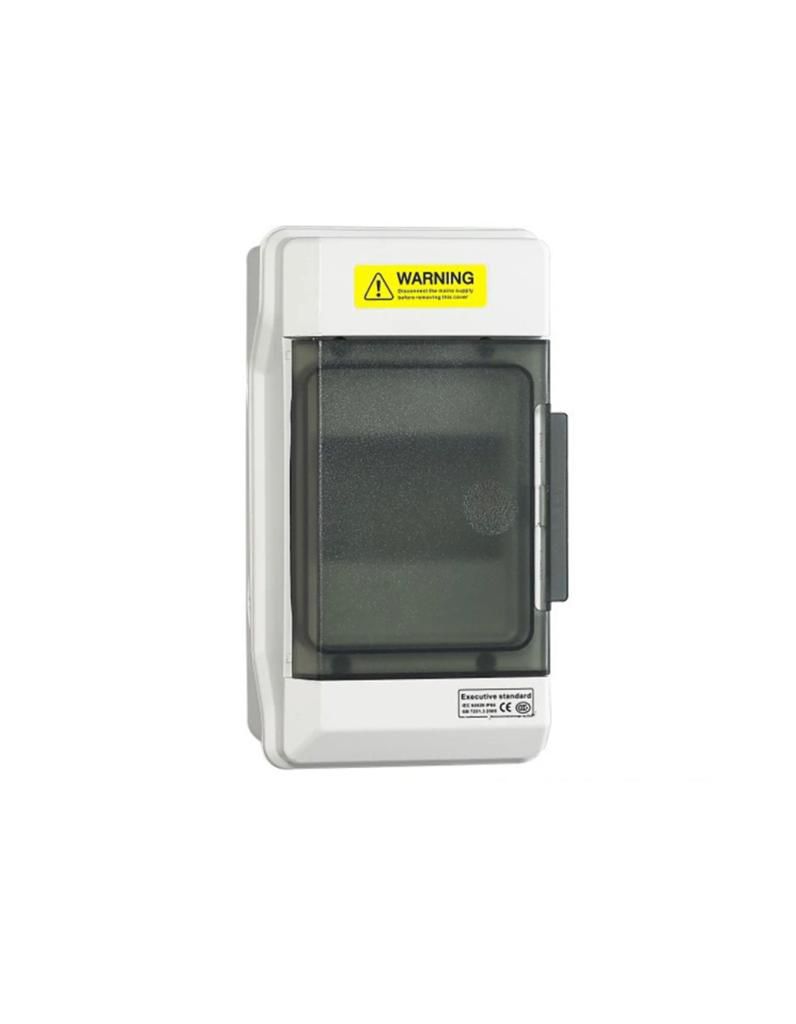

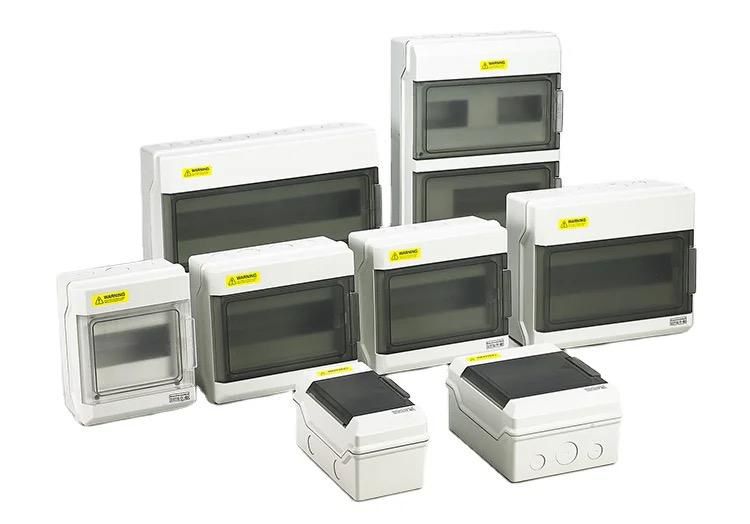

The enclosure features a smoked or transparent hinged front cover that allows quick visual inspection of breaker status without opening the door. This design improves operational safety, reduces unnecessary access to energized components, and supports faster troubleshooting during maintenance or inspection procedures. Multiple enclosure sizes are available, making these Weatherproof Distribution Boxes suitable for small single-circuit boards as well as larger multi-circuit distribution installations.

Because of their sealed construction and durable materials, Weatherproof Distribution Boxes are widely used in residential, commercial, and industrial electrical installations where environmental protection is essential. These enclosures help maintain an organized electrical layout while ensuring that circuit protection devices remain shielded from outdoor environmental exposure.

Typical Applications of Weatherproof Distribution Boxes

  • Outdoor and indoor sub-distribution boards for villas, apartments, shops, offices, and warehouses
  • Garden electrical control panels, irrigation systems, pool and fountain equipment boards
  • Car wash facilities, workshops, garages, and rooftop service areas
  • Outdoor HVAC equipment isolation and feeder protection
  • Temporary construction site power distribution when installed with proper cable glands and sealing

In these environments, Weatherproof Distribution Boxes provide a reliable enclosure that protects electrical devices while keeping wiring systems organized and easy to maintain. The surface-mounted design also simplifies installation on walls, panels, or structural surfaces.

Construction and Materials of Weatherproof Distribution Boxes

  • Enclosure body: impact-resistant and flame-retardant thermoplastic, typically ABS or polycarbonate depending on the model
  • Front cover or door: smoked or transparent hinged cover that provides visibility and protection
  • Sealing system: perimeter gasket designed to maintain enclosure weather resistance
  • Fasteners: corrosion-resistant hardware suitable for outdoor conditions
  • Finish: clean white or grey housing commonly used in building service installations

The material construction of these Weatherproof Distribution Boxes ensures durability and mechanical strength while maintaining electrical insulation properties. This combination of protective materials helps extend the service life of the enclosure even in demanding environmental conditions.

Electrical Layout and Compatibility in Weatherproof Distribution Boxes

  • Mounting system: internal 35 mm DIN rail compatible with standard modular devices
  • Configurable space: available in multiple enclosure capacities depending on the number of circuits required
  • Typical device combinations:
    • Main isolator with multiple MCB or RCBO circuits
    • RCCB protection groups with outgoing MCB circuits
    • SPD surge protection devices combined with breakers and control components
  • Cable entry: pre-formed knockouts located on top, bottom, or sides depending on the enclosure design
  • Accessories: internal mounting brackets, DIN rails, and fixing points depending on the supplied model

Protection Ratings of Weatherproof Distribution Boxes

Protection ratings may vary depending on the exact enclosure model. Always verify the final specifications from the product label or manufacturer datasheet before installation.

  • Ingress Protection (IP): typically IP66 providing strong protection against dust and water jets
  • Impact resistance: usually within the IK07–IK08 range for outdoor distribution enclosures
  • Operating environment: suitable for damp locations and outdoor installations when correctly sealed
  • Installation method: surface mounting on walls or structural panels

Installation Best Practices for Weatherproof Distribution Boxes

  • Use correct cable glands and seal unused knockouts to maintain the enclosure IP rating.
  • Where possible, route cables downward and create a drip loop to reduce water tracking.
  • Mount the enclosure on a stable vertical surface and ensure the door closes completely.
  • Select protective devices such as MCB, RCCB, or RCBO according to project design and local electrical codes.

For additional guidance on enclosure protection ratings and electrical installation practices, refer to
International Electrotechnical Commission (IEC)
or the
Electrical Installation Guide,
which provide internationally recognized standards for safe electrical systems.
