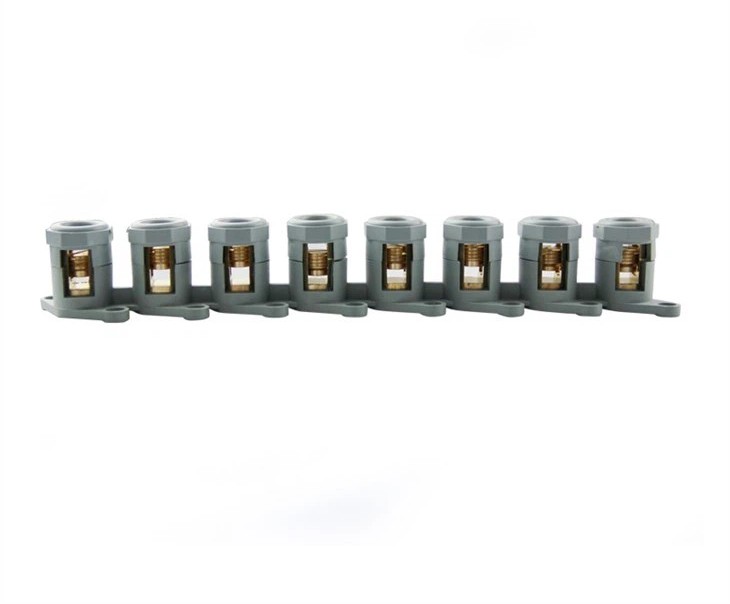

Gray Connector Strip 8X1 – Screw Terminal Block for Multi-Way Wiring

The Gray Connector Strip 8X1 is a practical multi-way screw terminal block designed to join and distribute electrical conductors safely and neatly within electrical installations. Each terminal incorporates a metal clamping insert, typically brass, combined with a screw-tightened connection that secures the conductor firmly and maintains stable electrical contact over time.

The body of the Gray Connector Strip 8X1 is manufactured from durable insulating plastic designed to electrically isolate the terminals while maintaining structural stability during installation and service. The strip includes mounting feet or fixing holes which allow the connector to be fixed onto panels, mounting plates, or inside junction boxes, distribution enclosures, control cabinets, and street-lighting pole compartments.

This connector strip provides a convenient method for wire-to-wire splicing, multi-point distribution, and organized wiring. Instead of using multiple individual connectors, the Gray Connector Strip 8X1 allows several conductor connections to be arranged within a single component, improving cable organization and simplifying maintenance in electrical systems.

In practical installations, the Gray Connector Strip 8X1 is commonly used where multiple electrical conductors must be joined or distributed from a single location. By grouping connection points into a structured terminal strip, installers can create cleaner layouts and maintain better accessibility for inspection or servicing.

Applications of Gray Connector Strip 8X1

• Lighting circuits: joining and distributing conductors inside lighting control or junction boxes.
• Control wiring: organized connection points for signal or control circuits.
• Street-lighting pole bases: structured wiring connections within pole compartments.
• Electrical cabinets: internal wiring management in control and distribution enclosures.
• General building installations: wire distribution in junction boxes and electrical panels.

In these applications, the Gray Connector Strip 8X1 provides a structured approach to conductor termination. Multiple connection points can be organized in a single strip, helping technicians identify circuits more easily and maintain consistent wiring arrangements.

Construction of Gray Connector Strip 8X1

• Terminal insert: metal conductor clamp, commonly brass, providing reliable electrical conductivity.
• Screw mechanism: screw-clamp terminal design for secure conductor retention.
• Body material: insulating plastic housing designed to separate adjacent terminals.
• Mounting base: integrated mounting holes or feet for fixing onto panels or enclosures.

The construction of the Gray Connector Strip 8X1 combines electrical insulation with mechanical clamping strength. The plastic body separates and supports each terminal while the metal insert forms the conductive path. The screw clamp secures the conductor inside the terminal opening, helping maintain a stable electrical connection during normal operation.

Key Features of Gray Connector Strip 8X1

• Multi-way connector strip that helps organize wiring distribution inside electrical enclosures.
• Screw-clamp terminals designed for reliable conductor holding.
• Insulated plastic housing with brass or metal inserts for electrical conductivity.
• Mountable design suitable for installation inside junction boxes and panels.
• Maintenance-friendly connections allowing re-tightening during inspection.

These features make the Gray Connector Strip 8X1 suitable for installations where structured wiring distribution and accessible connection points are required. The screw terminal method also allows conductors to be secured and re-secured during service or system modification.

Technical Information of Gray Connector Strip 8X1

Exact values may vary by manufacturer and terminal size. Confirm final ratings from the product marking or official datasheet.

• Type: screw terminal connector strip / terminal block strip.
• Body material: insulating plastic (commonly nylon, PA, or PVC-type materials).
• Conductor clamp material: brass or metal insert combined with steel screws.
• Number of ways: multi-way strip configuration.
• Rated voltage: typically up to 400–450V AC depending on model.
• Rated current: typically within the range of 20A to 63A depending on terminal size.
• Conductor capacity: commonly 0.5–10 mm² depending on terminal size.
• Installation: mounted on panels or inside boxes using integrated base holes.
• Operating temperature: depends on material grade and manufacturer specification.

The Gray Connector Strip 8X1 is designed for general electrical wiring applications where stable conductor termination and organized distribution points are required. The final electrical ratings and conductor capacity should always be verified according to the manufacturer’s specifications and installation requirements.

For general information about electrical terminal connections and installation practices, you can refer to
IEC
and
Electrical Installation Guide.
These references provide broader guidance on wiring systems, terminal connections, and electrical installation standards.
