Photoluminescent Emergency Exit Symbol – Running Man is a clear safety sign designed to guide building occupants and visitors toward emergency exits and evacuation routes. Its universally recognized running man pictogram communicates the required direction without relying on lengthy written instructions.
The Emergency Exit Symbol can be installed on exit doors, corridors, stairwell entrances, and route transition points. When used as part of a complete evacuation signage system, it helps maintain route continuity and reduces confusion at locations where occupants must make quick movement decisions.
The photoluminescent material absorbs and stores ambient light during normal operating hours. When the surrounding light falls or the power supply is interrupted, the stored energy is released gradually as visible light. This allows the sign to remain visible without batteries, electrical wiring, or a direct power connection.
How the Emergency Exit Symbol Works
The Photoluminescent Emergency Exit Symbol uses a light-storing material that charges from suitable natural or artificial lighting. It stores this light while the building lighting is operating and releases it gradually in darkness or low-light conditions.
This passive lighting method supports emergency wayfinding without electrical components or battery replacement. The sign must receive sufficient light during normal building operation to achieve the required photoluminescent performance.
- No batteries required to produce visible light.
- No electrical wiring required for operation.
- Absorbs and stores ambient light during working hours.
- Releases stored light when lighting levels fall.
- Designed for indoor use along evacuation routes.
- Indoor service life of up to 25 years depending on the model, installation conditions, and maintenance.
Emergency Exit Symbol Key Features
- Universal recognition: Uses the running man pictogram for direct visual communication.
- Photoluminescent operation: Supports visibility during power interruptions and low-light conditions.
- No electrical supply: Operates without wiring, batteries, or powered components.
- Self-adhesive installation: Attaches to suitable smooth indoor surfaces without drilling.
- Low maintenance: Contains no batteries that require charging or replacement.
- Long indoor service life: Provides up to 25 years of service depending on the selected model and site conditions.
- Multiple options: Available in different materials, sizes, and running man directions.
- Consistent appearance: Supports a coordinated evacuation signage system across the building.
Emergency Exit Symbol Applications
The Emergency Exit Symbol is suitable for indoor areas that require clear and continuous direction toward escape routes, including:
- Emergency exit doors
- Corridors and hallway intersections
- Stairwell doors and landings
- Route changes and decision points
- Offices and administrative buildings
- Shopping centers and hotels
- Hospitals and educational facilities
- Residential shared areas and basements
- Industrial administration areas and evacuation corridors
The sign is useful at locations where building occupants must identify the correct direction quickly. A coordinated layout of running man symbols, directional arrows, and exit signs can guide occupants from internal areas to the final emergency exit.
Available Emergency Exit Symbol Options
The product is available in several configurations to match the approved evacuation plan and installation requirements:
- Material: Aluminum or PVC depending on the selected model.
- Size: 14.6 cm or 20 cm.

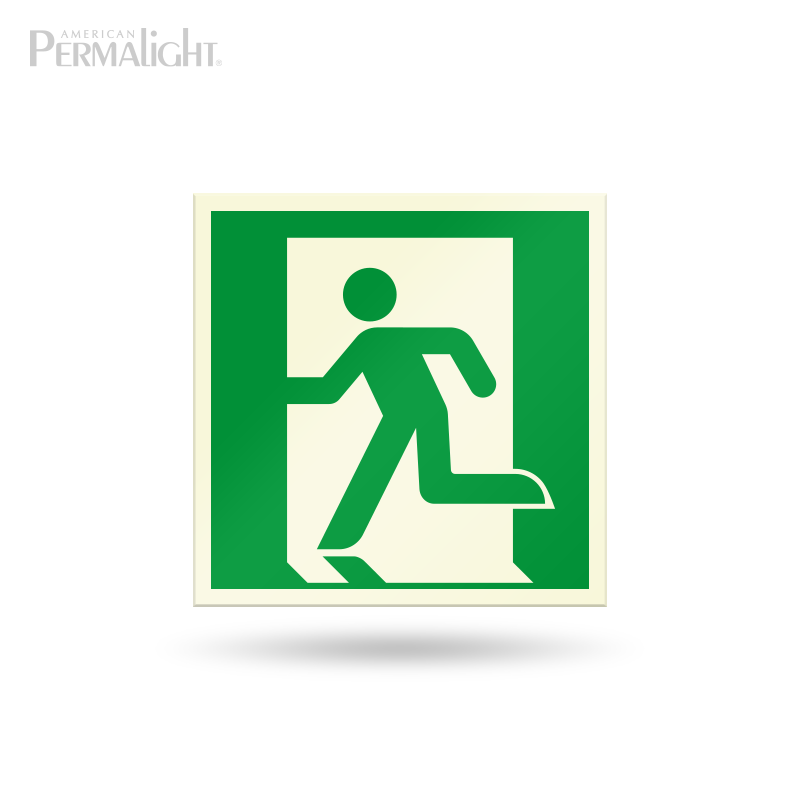

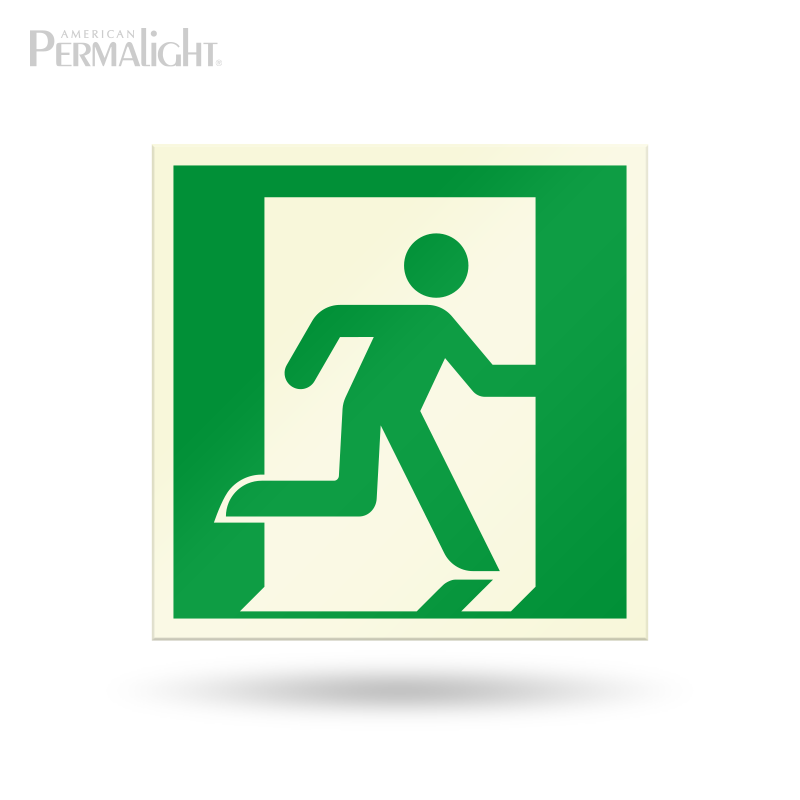

- Pictogram direction: Left-facing or right-facing running man.
- Installation: Self-adhesive backing for suitable indoor surfaces.
- Environment: Indoor building applications.
The running man direction must match the actual evacuation route shown in the approved safety plan. It should not be selected based only on available wall space or visual preference.
Installing the Photoluminescent Emergency Exit Symbol
The self-adhesive backing supports fast installation without screws, drilling, or electrical work. Follow these steps for a secure installation:
- Confirm the required direction using the approved evacuation plan.
- Select a visible position along the escape route.
- Clean the surface to remove dust, oil, and moisture.
- Allow the surface to dry before installation.
- Remove the protective backing and apply even pressure across the sign.
- Confirm that the sign receives sufficient ambient light during operating hours.
After installation, inspect the sign under normal and reduced lighting conditions. Include it in the building’s routine safety signage inspection program.
Emergency Exit Symbol Codes and Standards
The product is intended for use within emergency exit and evacuation marking systems that refer to the following requirements:
- Saudi Building Code SBC 201 and SBC 801 – Chapter 10, Means of Egress.
- Saudi Building Code Section 1025 – Luminous Egress Path Markings.
- UL 1994 – Luminous Egress Path Marking Systems for listed product models.
- Relevant international practices for emergency signage and evacuation route marking.
UL 1994 certification and the listed technical values apply to the specified aluminum models covered by the product certificate and bearing the UL mark. Confirm the product code and data sheet before including the certification in project submissions.
Technical Data for the Listed Aluminum Model
- Product type: Photoluminescent aluminum emergency exit symbol.
- Luminance after 10 minutes: Up to 150 mcd/m² according to the model data.
- Luminance after 60 minutes: Up to 22 mcd/m² according to the model data.
- Decay duration: Up to 2,100 minutes or 35 hours under test conditions.
- Fire classification: Class A according to the listed aluminum model data.
- Application: Indoor doors and approved evacuation routes.
Technical properties and certifications may differ between aluminum and PVC versions. Review the data sheet for the selected model before approval or installation.
Benefits of a Non-Electrical Exit Symbol
A photoluminescent exit symbol provides visual guidance without relying on a direct electrical supply. It contains no batteries that require charging or replacement and does not require electrical cables or powered lighting components.
The sign stores ambient light during normal building operation and remains available when lighting levels fall. This reduces installation work and routine maintenance requirements while supporting continuous evacuation route marking.
Emergency Exit Symbol Frequently Asked Questions
Does the Emergency Exit Symbol need a battery?
No. The photoluminescent material absorbs ambient light and releases it when the surrounding light level falls.
Does the sign require electrical wiring?
No. It operates without wiring, electrical connections, or an external power supply.
Can this model be installed outdoors?
This version is designed for indoor use. Select a product rated for exterior conditions when the installation location is exposed to weather, water, or direct sunlight.
What is the expected service life?
The indoor service life can reach 25 years depending on the selected model, installation conditions, light exposure, cleaning, and maintenance.
Can I select the running man direction?
Yes. Left-facing and right-facing versions are available to match the direction of the approved evacuation route.
Are all material options UL 1994 certified?
Certification must be confirmed using the product code and data sheet. The referenced UL 1994 certification and technical values apply to the listed aluminum models bearing the UL mark.
