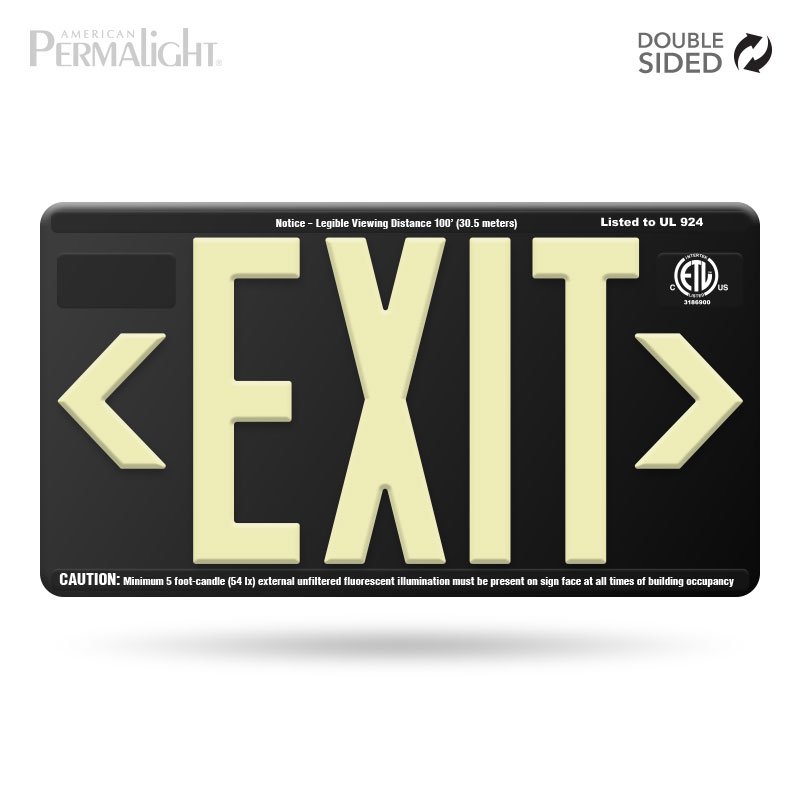

Outdoor Photoluminescent EXIT Sign for Wet Locations – 100 ft Viewing Distance
The Outdoor Photoluminescent EXIT Sign provides clear emergency exit identification in outdoor, covered and moisture-exposed locations. Its black ABS housing, photoluminescent EXIT lettering and long viewing distance make it suitable for exterior exits, parking structures, covered walkways and industrial evacuation routes.
The photoluminescent material absorbs and stores light from LED or fluorescent sources during normal operating hours. When the surrounding light decreases or the electrical supply fails, the stored light produces a visible glow that helps occupants identify the exit route.
This Outdoor Photoluminescent EXIT Sign does not require batteries, electrical wiring or an internal powered light source. This reduces installation requirements and eliminates routine maintenance associated with batteries and electrical components.
The sign includes two field-applied directional chevrons and mounting hardware. Installers can configure the exit direction and select surface, ceiling, flag or conduit mounting according to the approved evacuation plan.
Outdoor Photoluminescent EXIT Sign Construction
The sign uses materials and components intended for exterior and wet-location applications while maintaining visibility and structural stability.
- Housing: Impact-resistant black ABS plastic.
- Lettering: Photoluminescent EXIT text.
- Directional indicators: Two field-applied chevrons.
- Sign configuration: Single-sided.
- Viewing distance: Up to 100 ft or 30 m.
- Dimensions: 8-5/8 × 15-7/8 in or 21.9 × 40.3 cm.
- Installation environment: Outdoor and wet locations.
- Mounting options: Surface, ceiling, flag or conduit mounting.
- Mounting hardware: Included.
How the Outdoor Photoluminescent EXIT Sign Works
The sign operates through a light-storage cycle rather than an electrical lighting system.
- It absorbs LED or fluorescent light during building operating hours.
- It stores light energy in the photoluminescent material.
- It releases a visible glow when ambient lighting decreases.
- It continues to identify the exit during a loss of normal lighting.
- It does not require batteries to produce light.
- It does not require electrical wiring or a dedicated power connection.
This operating method provides passive emergency guidance when the specified charging-light conditions are maintained.
100 ft Viewing Distance and Lighting Activation
The Outdoor Photoluminescent EXIT Sign provides a viewing distance of up to 100 ft or 30 m. This makes it suitable for large areas where occupants must recognize the exit from a distance.
The sign is listed under UL 924 for activation using LED or fluorescent lighting. A minimum of 5 foot-candles or 54 lux must reach the sign face during building occupancy to charge the photoluminescent material.
The charging light enables the sign to store energy during operating hours and release it after the surrounding illumination decreases. The final installation must keep the sign visible and provide the required light level across its face.
Benefits of the Outdoor Photoluminescent EXIT Sign
- Outdoor and wet-location use: Suitable for areas exposed to moisture.
- Long viewing distance: EXIT lettering remains recognizable from up to 30 m.
- No batteries: No battery replacement or charging is required.
- No electrical wiring: The sign does not need a dedicated electrical connection.
- Ambient-light storage: It stores light from LED or fluorescent sources during operating hours.
- Directional configuration: Two chevrons allow the exit direction to be selected on site.
- Multiple mounting methods: Supports surface, ceiling, flag and conduit installation.
- Reduced power-related maintenance: No powered lighting components require routine servicing.
Codes and Safety Standards
According to the supplied product data, this Outdoor Photoluminescent EXIT Sign is UL 924 listed and supports projects referencing the following codes and standards:
- Saudi Building Code SBC 201 and SBC 801 – Chapter 10, Means of Egress.
- Section 1013 – Exit Sign requirements.
- Section 1025 – Luminous Egress Path Markings.
- UL 924 – Emergency Lighting and Exit Signs.
- IBC – International Building Code.
- IFC – International Fire Code.
- NFPA 101 – Life Safety Code.
- NFPA 5000 – Building Construction and Safety Code.
Project consultants must confirm the final installation location, charging-light level and mounting method against the approved evacuation plan and local requirements.
Outdoor and Wet-Location Applications
- Exterior emergency exit doors.
- Covered walkways and building perimeter exits.
- Parking garages and open parking structures.
- Moisture-exposed corridors.
- Industrial facilities with outdoor evacuation routes.
- Large facilities requiring exit identification from up to 30 m.
The sign can be combined with other photoluminescent exit signs to create a continuous emergency wayfinding system across the facility.
Installation Requirements
Select the mounting method according to the viewing direction and approved evacuation route. Install the required chevron or chevrons before placing the sign in service.
Confirm that at least 54 lux of LED or fluorescent light reaches the sign face during normal occupancy. Avoid locations where building elements, equipment or doors may block the sign from the intended viewing direction.
Review the product datasheet and project requirements before final approval because charging performance and visibility depend on the light source, exposure duration, mounting position and installation environment.
